PVC WIDTH PANEL MOULD

width for 600 to 1 200mm panel mould

– Material: PVC, UPVC

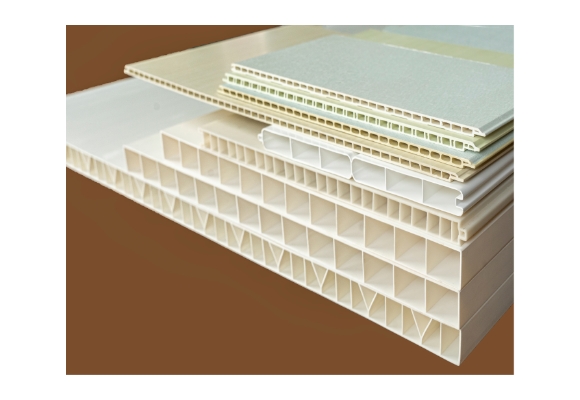

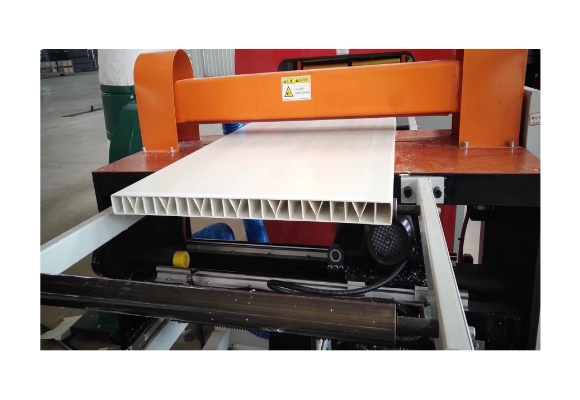

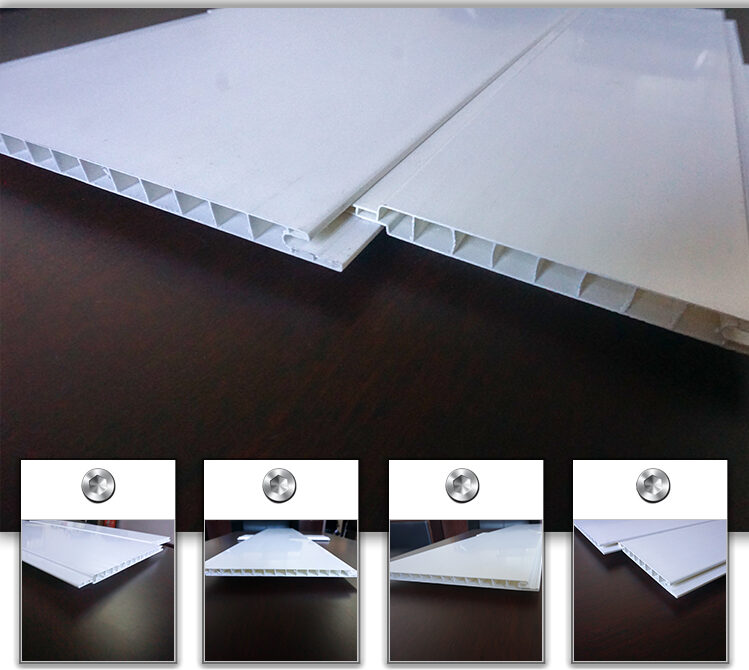

– It’s used for making ceiling panel, ceiling board.
– High extrusion speed
– Easy to use and replace
– Long-term
– Can be repaired
– Mould Material has been specially treated. Which is to extend the service life.
– Mould head is designed with inside and outside double circulating water cooling system to shape the profile quickly.



Mould Name	Ceiling Panel Extrusion Mould
Material of Mould	3Cr17 Nimo or Germiny Din 1.2316
Mould Component	Die Head + Calibrator + Water Tank + Heating Zones
Mould Cavity	1
Surface Treament	Mirror Polished + Chrome Plated
Profile Material	UPVC, PVC
Extrusion Speed	2 or 3 meters per minute
Testing	Mould will be tested before leave factory
Package	Wood/Polywood case (standard export packing)
Lead Time	30 days after contracted

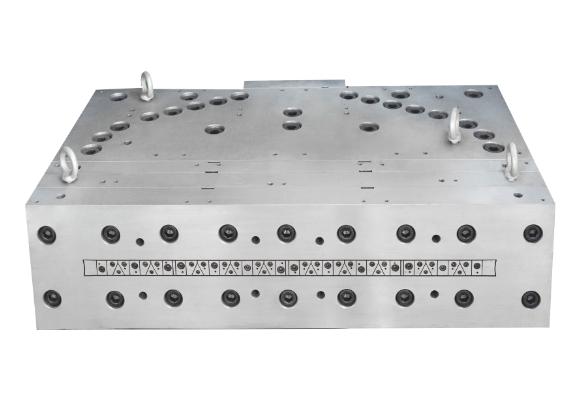

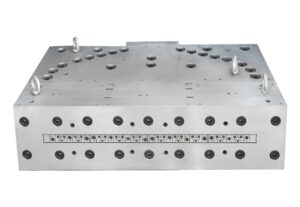

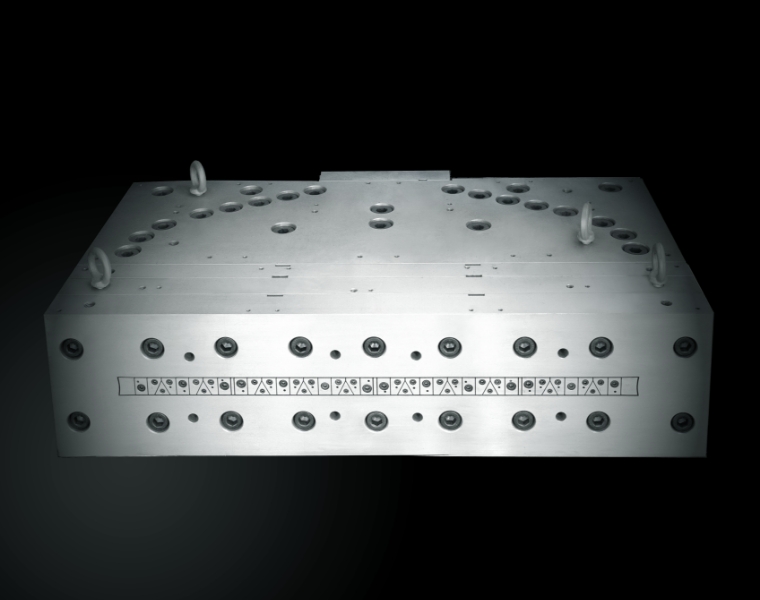

Mould Head Features:

1. Can be quick assembling as die plates with straight pins.

2. Scientific cavity design and polished channel to ensure smooth extrusion and higher extrusion speed.

3. High quality hard chrome plating 3Cr17 nimo / Din1.2316 mould steel.

4. Experienced technicians and precision equipments ensure the tolerance accuracy of the mould.

5. Scientific designed extrusion channel.

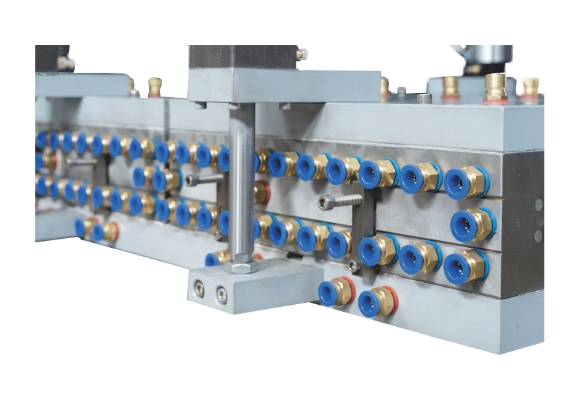

Calibrator Features:

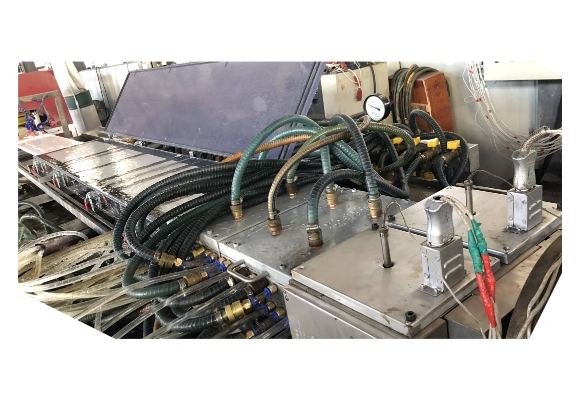

1. Calibrator is designed with inside and outside double circulating water cooling system to shape the profile quickly.

2. Mirror polished channel to ensure the profile with smooth surface.

3. Use pure copper nozzles, it is durable and user friendly.

4. U-shaped handle for easier operation.

5. Mould material has been specially treated, which is to extend the service life.

Water Tank Features:

1. High-quality vacuum negative pressure water tank with high-strength PMMA board combined with stainless steel plate edging.

2. The main advantages of the water tank are good cooling effect, uniform cooling and accurate forming dimensions.
