Huayi Mould Co., Ltd. specializes in designing and manufacturing WPC (PE) extrusion moulds / tooling / die heads for outdoor fencing and indoor/outdoor flooring applications.
Each mould is custom-built according to the customer’s required width, pattern, and extrusion line configuration, ensuring high precision, smooth performance, and long service life.
Our extrusion tooling systems are engineered for high-speed production, stable output, and superior surface quality, making them ideal for wood plastic composite (WPC) decking and fencing production lines worldwide.
🔹 Product Features
-
Designed for WPC (PE-based wood plastic composite) materials
-

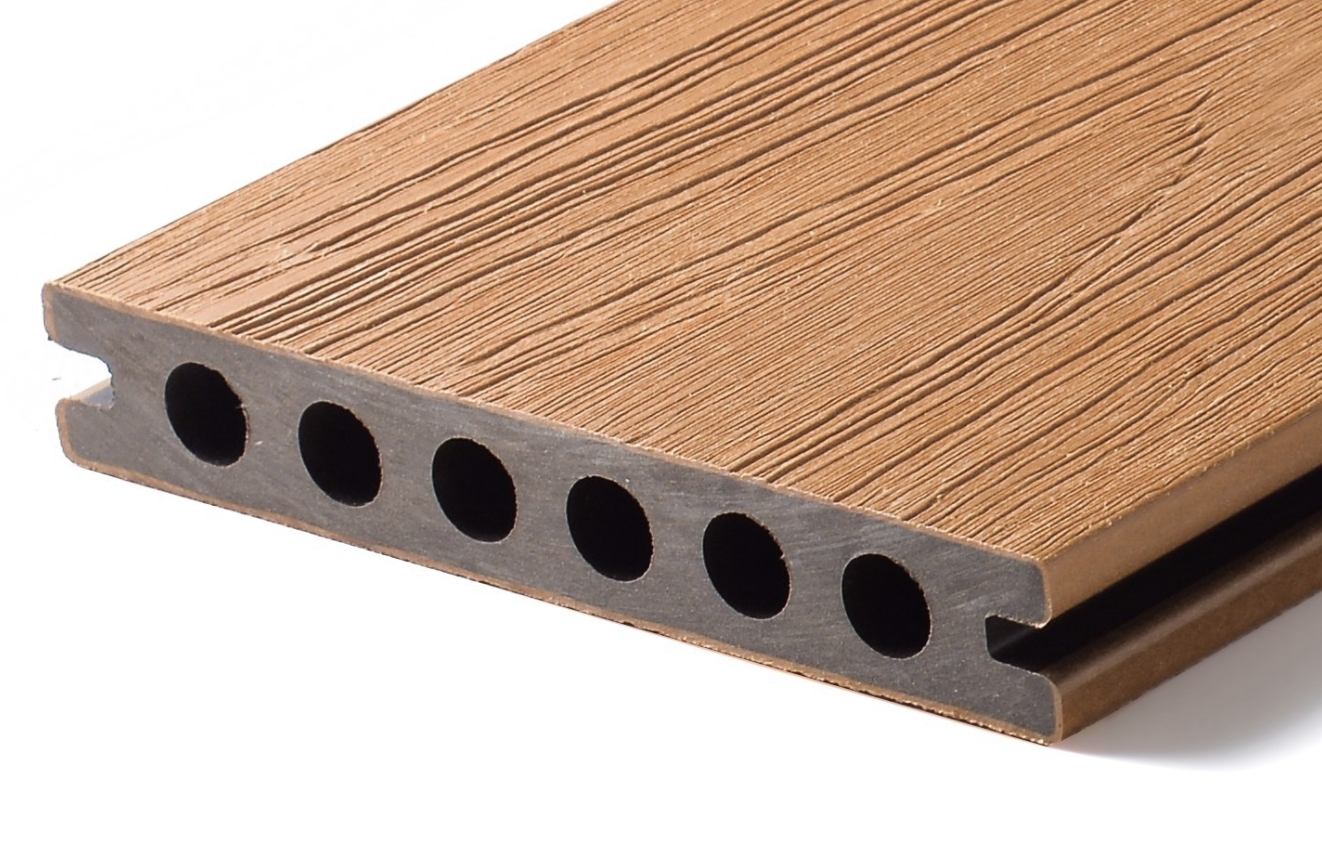

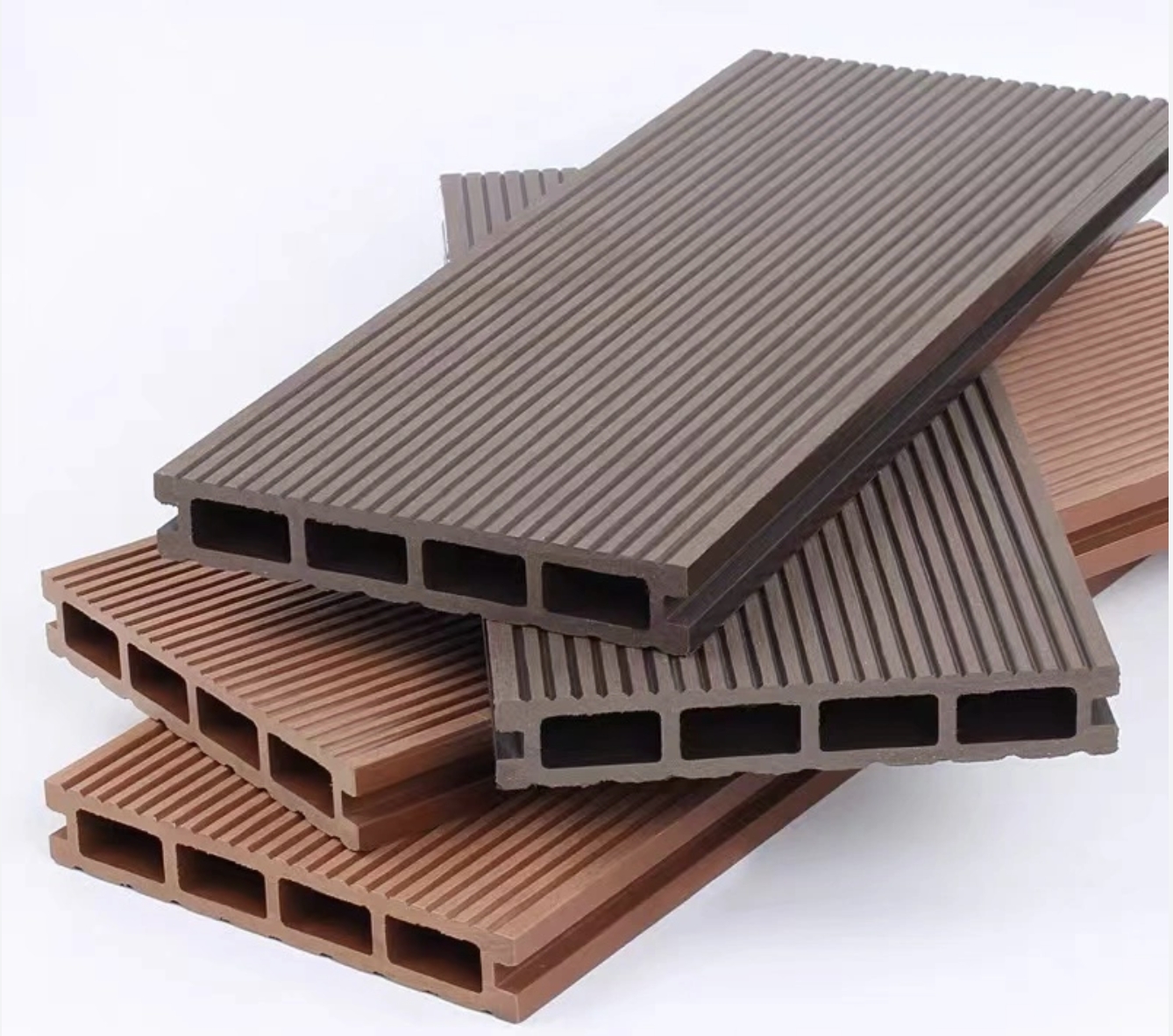

Used for outdoor fencing, decking, and flooring extrusion
-
High extrusion speed with uniform melt flow
-
Customizable width, design, and surface pattern based on customer requirements
-
Easy to assemble, maintain, and replace
-
Repairable and designed for long-term stability
-
Special heat-treated and chrome-plated mould steel for extended service life
-
The double circulating water cooling system ensures quick shaping and efficient cooling
⚙️ Technical Specifications
| Item | Description |
|---|---|
| Mould Name | WPC (PE) Decking / Fencing Extrusion Mould |
| Mould Material | 3Cr17 Nimo / DIN 1.2316 (Germany Standard) |
| Mould Components | Die Head + Calibrator + Water Tank + Heating Zones |
| Mould Cavity | 1 |
| Surface Treatment | Mirror Polished + Hard Chrome Plated |
| Profile Material | WPC, PE |
| Extrusion Speed | 2–5 meters per minute (depending on formulation) |
| Testing | All moulds are fully tested before delivery |
| Package | Polywood / Wooden Case (Export Standard) |
| Lead Time | 30 Days After Contract Confirmation |
| Customization | Width, thickness, and profile shape available upon request |

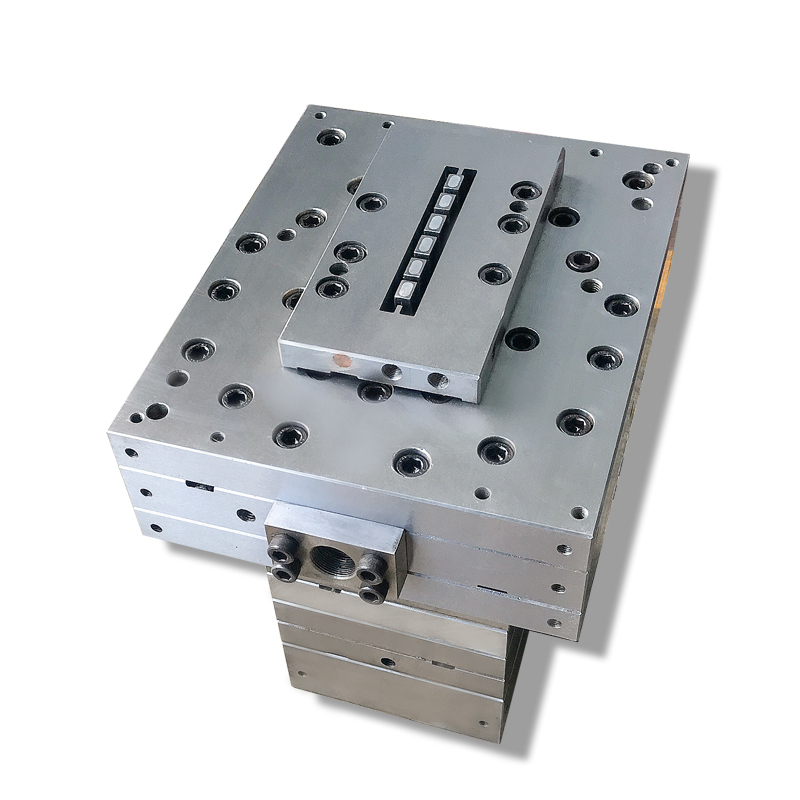

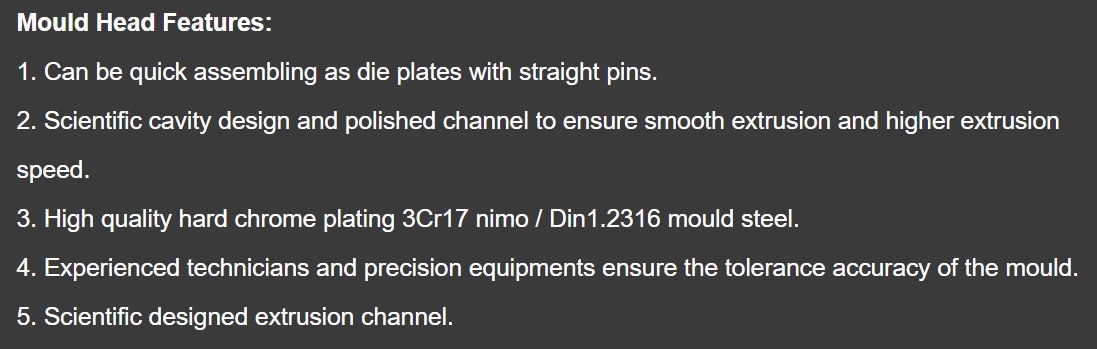

🧩 Mould Head (Die Head) Features
-
Quick-assembly modular design using die plates with precision pins.
-
Optimized flow channel geometry ensures smooth extrusion and balanced melt distribution.
-
Manufactured from 3Cr17 Nimo / DIN 1.2316 stainless mould steel for wear and corrosion resistance.
-
Mirror-polished channels and CNC machining ensure tight tolerance and smooth output.
-
Balanced extrusion design improves product accuracy and reduces material waste.

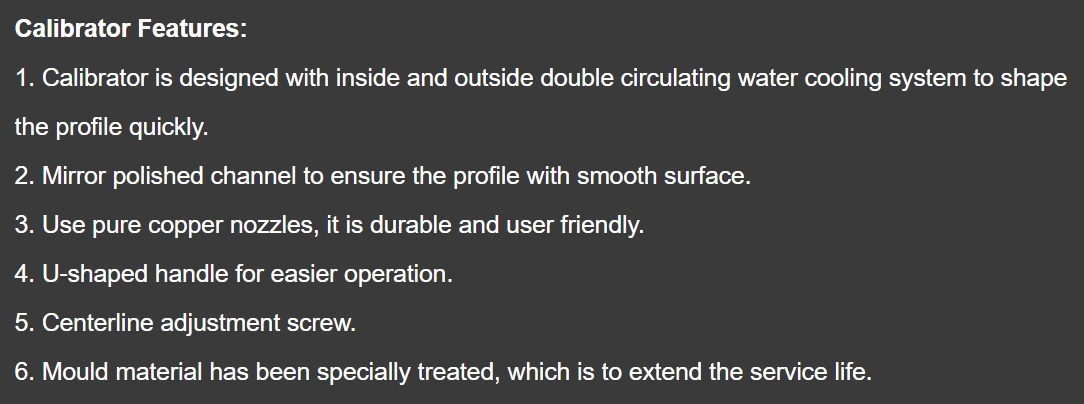

🌊 Calibrator Features
-
Inner and outer dual-circulating water cooling for fast shaping and efficient forming.
-
Mirror-polished vacuum channels guarantee a smooth surface finish.
-
Pure copper cooling nozzles improve durability and cooling precision.
-
Ergonomic U-shaped handles for convenient operation and adjustment.
-
All calibrator components are specially treated to extend lifespan and prevent corrosion.

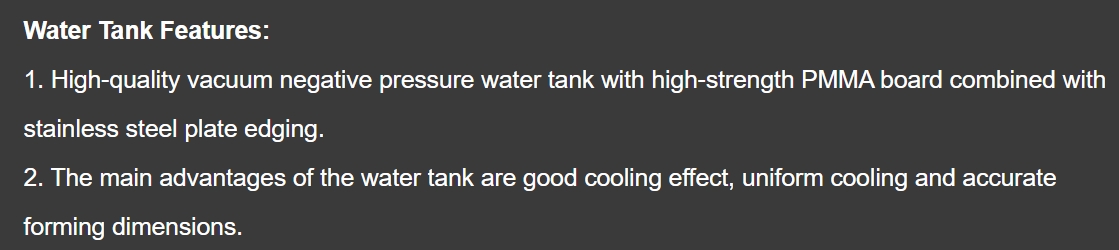

💧 Water Tank Features
-
Built with high-grade stainless steel and transparent PMMA observation panels.
-
Equipped with a vacuum negative pressure cooling system for uniform and precise shaping.
-
Excellent temperature stability and efficient water circulation.
-
Ensures accurate forming dimensions and consistent surface finish.
🏭 Why Choose Huayi Mould
🏭 Professional Expertise – Over a decade of experience in WPC (PE), PVC, and plastic profile extrusion tooling.
⚙️ Advanced Technology– Equipped with CNC machining, wire cutting, and precision testing systems.
🌍 Global Service– Trusted by clients across Asia, Europe, the Middle East, and South America.
🤝 Customer-Centric Philosophy – We design every solution around your needs and product goals.
